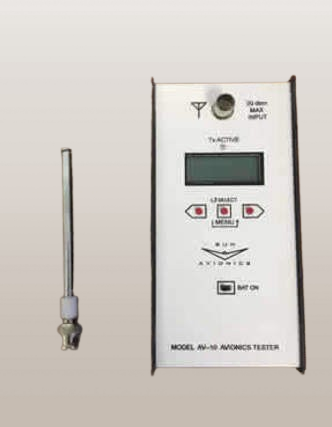

AV-10 AVIONICS RAMP TESTER

AV-10 instrument

AV-10 Personal Ramp Tester

AV-15 Avionics Ramp Tester

AV-15

AV-17 Avionics Ramp Tester

AV-17

AV Comparison Table

Compare

AV-10 Ramp Tester Specifications

Operating Temperature Range ( -20 to +50 °C )
Storage Temperature Range ( -30 to +70 deg °C )
-
Accuracy of All Carrier Frequencies;
Basic accuracy= +/- 2.5 PPM plus +/-1.0 PPM aging per year.
Variation over temperature= +/- 2 PPM over -20 to +50 °C range.
-
Output Power;
ADF = -12 +/-3 dbm
VOR= -10 +/-3 dbm
ILS Localizer= -10 +/-3 dbm
ILS GS = -17 +/-3 dbm
ILS MKR = -15 +/-3 dbm
DME = -12 +/-3 dbm
TXPDR = -12 +/-3 dbm
-
VOR radial accuracy; +/- 1 deg
ILS localizer DDM accuracy; +/- 15%
ILS glide slope DDM accuracy; +/- 15%
DME accuracy; +/- 0.1NM
-
Transponder specs;
PRF 235+/-5 Mode A,C 50 +/-2 Mode S
P2 level equal P1 +/- 0.1 dbm
P2 position 2 +/-0.01 uS from P1
P3 position 8 +/- .01uS or 21 +/- 0.02uS Rel to P1
Pulse width 0.8 +/-0.01uS P1,P2,P3
Frequency 1030 MHz Tx, 1090 MHz Rx , +/- 2.5ppm
Reply % 0 to 100% displayed +/- 0.5%
Reply window 2.5 to 3.5uS F1 from P3
Pulse Width reads out to +/- 50nS resolution
X Data Pulse Must=0 for good read
SPI Displays ID message
